OTB 80 CNC

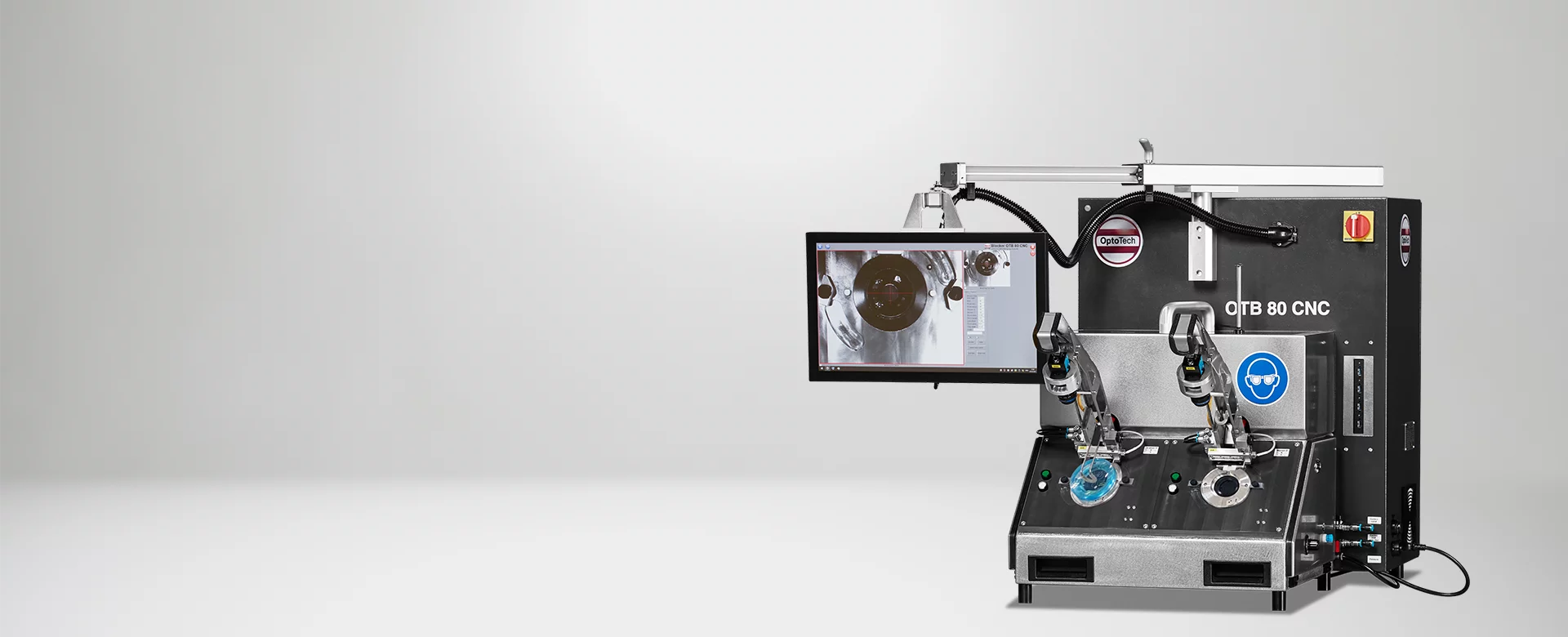

The layout blocker OTB 80 CNC from OptoTech is the ideal CNC-controlled prism layout blocker for midsized and big laboratories.

Spectacle optics

De- / Blocking

Manual

Plastic

Molds

Mineral Glass

Contact request

Highlights

The ideal CNC-controlled prism layout Blocker for midsize and big laboratories

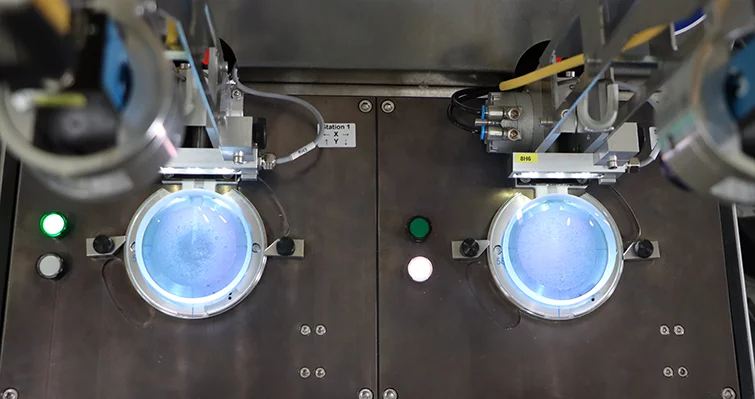

2 Blocking stations with optical aligning device

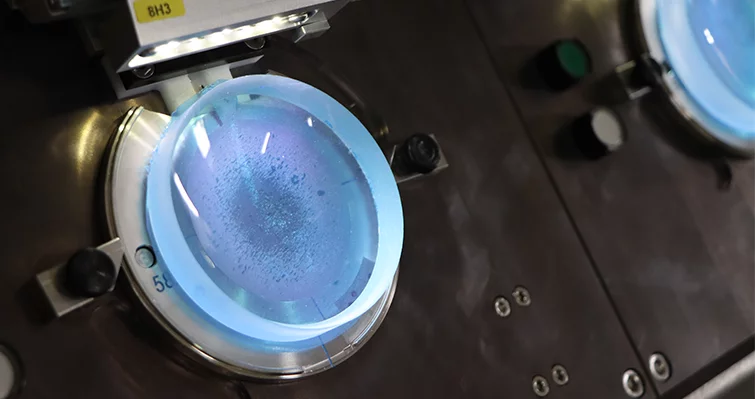

Blocking of prismatic and plano lenses

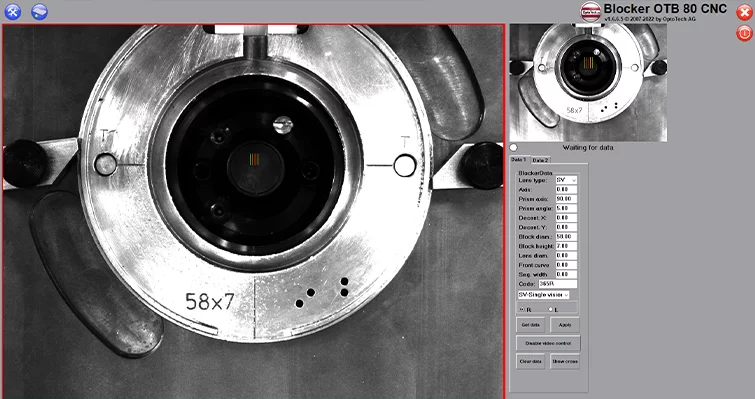

The included active video alignment system guides the operator to achieve a very acurate blocking position. This means, blocking is only possible, when the correct lens position is reached (error-free blocking for the most known lens types)

System advantage

Saves time and reduces operating errors with data transfer from the host computer via barcode scanner

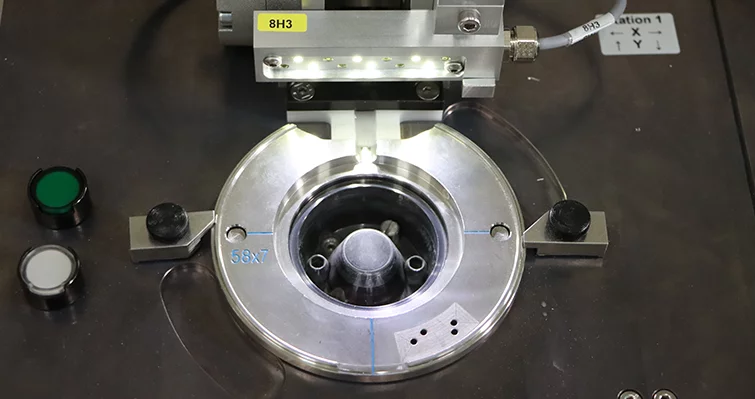

Blocking Ring recognition and autofill stop feature eliminates operator errors and increases the performance

	OTB 80 CNC
Application	CNC-Controlled Prism Layout Blocker
Lens Diameter	38 mm - 85 mm
Accessories	Barcode Scanner, Blocking Rings, Blocking Chucks, Measurement Devices, Different Alloy, Chiller, Cooling Plate, De-Blocking Rings of Various Diameter, De-Blocking Tank
Axis Position	0° - 180°
Blocking Chucks	V-groove DIN 58766
Blocking Diameter	36 - 68 mm
Blocking Height	7 - 13 mm
Blocking Method	Alloy Blocking
Blocking Type	Prismatic and Plano
Control	PC based Controls with CNC
Front Curve	Plano to 22 dpt.
Lens Material	All Material
Prism Angle	0° - 6° (With additional prism ring up to 11°)
Productivity	110 lenses/h
Air Pressure Requirement	5 bar
Power Requirement (others on request)	1,2 kVA / 100-240 V / 50 / 60 Hz
Dimensions	Width: 650 mm, Height: 850 mm, Depth: 1000 mm
Weight (approx.)	100 kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
